Network Switch

Modern Android app for network mode switching

A modern Android application that enables users to toggle between network modes, supporting 34 different network configurations including 2G, 3G, 4G, and 5G combinations. Features dual control methods: Root access for rooted devices and Shizuku for non-rooted devices. Built using Jetpack Compose and Material Design 3.

Purpose

Network Switch provides control over your device's network modes, supporting 34 different configurations from basic 2G-only to advanced 5G combinations. This includes:

• Basic Modes: GSM (2G), WCDMA (3G), LTE (4G), NR (5G) only
• Combined Modes: Various 2G/3G/4G/5G combinations
• Regional Modes: CDMA support for US carriers, TD-SCDMA for Chinese networks
• Global Modes: Network support for international usage

Use Cases

• Quick network switching through customizable Quick Settings tile
• Battery optimization by selecting power-efficient modes
• Speed optimization by forcing high-performance modes
• Coverage optimization in areas with poor signal quality
• Data usage management with specific network restrictions
• Testing network compatibility and performance

The app provides two methods of operation:

• Root Method: Direct system access for rooted devices
• Shizuku Method: System access through Shizuku service for non-rooted devices

Features

• Network Control: 34 different network modes including pure and combined configurations
• Privacy-Focused: No internet permissions, all operations are local
• Configurable Toggle Modes: Choose any two network modes for quick switching
• Quick Settings Tile: Shows current and next modes with customizable configuration
• Dual Control Methods: Root and Shizuku support for compatibility
• Modern Material Design 3 Interface: Clean, intuitive UI with extensive configuration options

Configuration

Network Mode Selection

The app supports 34 different network modes:

Basic Modes:

• GSM Only (2G)
• WCDMA Only (3G)
• LTE Only (4G)
• NR Only (5G)

Combined Modes:

• 2G/3G combinations with preference settings
• 3G/4G combinations (LTE/WCDMA)
• 4G/5G combinations (NR/LTE)
• Multi-generation support (2G/3G/4G/5G)

Regional Modes:

• CDMA support for US carriers (Verizon)
• TD-SCDMA support for Chinese networks
• Global modes for international roaming

Toggle Configuration

1. Open the app and tap the configuration icon
2. Select Mode A and Mode B from the dropdown menus
3. Preview your configuration
4. Save the configuration
5. Use the main toggle or Quick Settings tile to switch between modes

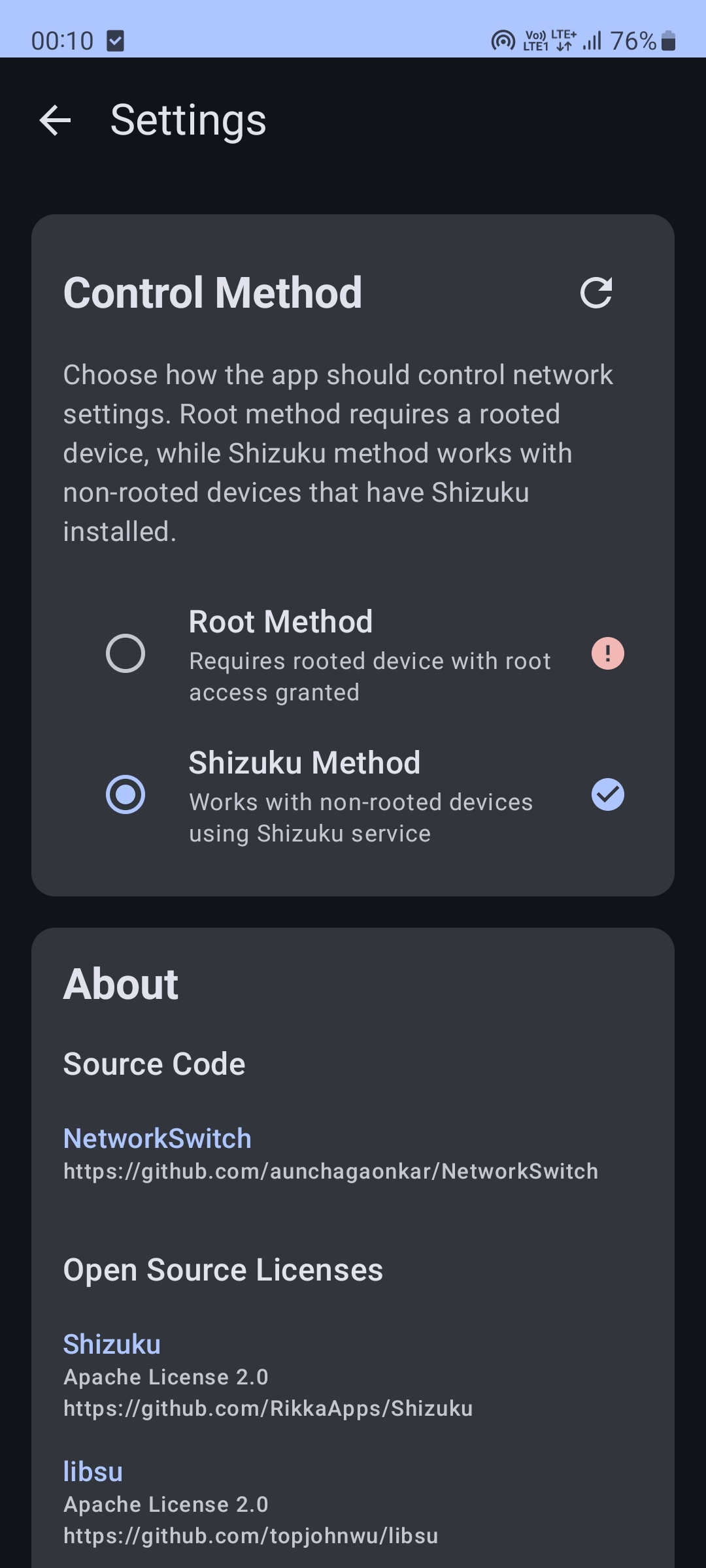

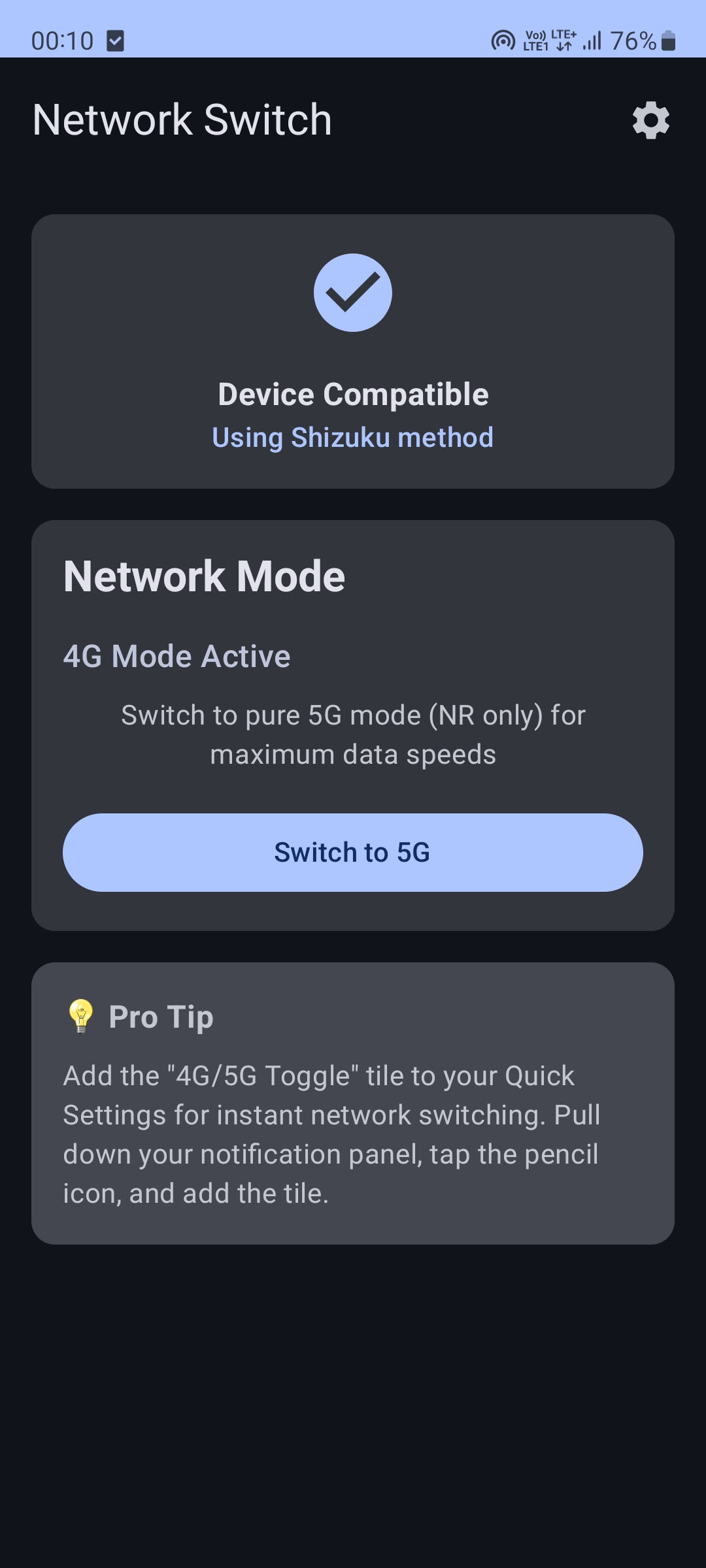

Screenshots

Requirements

Root Method

• Rooted Android device (Android 10+)
• Root permissions granted to the app

Shizuku Method

• Non-rooted Android device (Android 10+)
• Shizuku app installed and running
• ADB or Wireless ADB access to start Shizuku

Installation

1. Download the latest APK from the Releases page
2. Install on your Android device
3. Choose your preferred control method:
   • Root: Grant root permissions when prompted
   • Shizuku: Install Shizuku app and grant permission
4. Configure your preferred network modes in the app
5. Add the "Network Switch" tile to Quick Settings for instant access

Project Structure

app/
├── src/main/java/com/supernova/networkswitch/
│   ├── presentation/          # UI Layer
│   │   ├── ui/
│   │   │   ├── activity/     # Activities
│   │   │   ├── composable/   # Reusable Compose components
│   │   │   └── components/   # Shared UI components
│   │   ├── viewmodel/        # ViewModels with state management
│   │   └── theme/            # Material Design 3 theme
│   ├── domain/               # Business Logic Layer
│   │   ├── model/            # Domain models
│   │   ├── repository/       # Repository interfaces
│   │   └── usecase/          # Business use cases
│   ├── data/                 # Data Layer
│   │   ├── repository/       # Repository implementations
│   │   └── source/           # Data sources
│   ├── service/              # System Services
│   │   ├── NetworkTileService # Smart Quick Settings tile
│   │   ├── RootNetworkControllerService # Root-based network control
│   │   └── ShizukuControllerService     # Shizuku-based network control
│   └── di/                   # Hilt dependency injection modules
├── src/main/aidl/            # AIDL interfaces for IPC
├── build.gradle.kts          # App build configuration
└── proguard-rules.pro        # ProGuard rules

hiddenapi/                    # Android Hidden API access module
├── src/main/aidl/            # AIDL interfaces
└── build.gradle.kts          # Hidden API build config

.github/workflows/            # CI/CD pipelines
├── ci.yml                    # Continuous Integration
└── build-release.yml         # Release workflow

gradle/
├── libs.versions.toml        # Version catalog
└── wrapper/                  # Gradle wrapper

build.gradle.kts              # Root build configuration
settings.gradle.kts           # Project settings

Building from Source

# Clone the repository
git clone https://github.com/aunchagaonkar/NetworkSwitch.git
cd NetworkSwitch

# Build debug APK
./gradlew assembleDebug

# Build release APK
./gradlew assembleRelease

TODO

• Add unit tests for all core components
• Add customizable network mode support (34 modes)
• Implement adaptive app icon, with icon-pack launcher compatibility
• Implement scheduled/automatic network switching
• Add network speed monitoring and performance metrics
• Add multi-language support
• Add network performance benchmarking tools

Contributing

Contributions are welcome! Please follow these guidelines:

Getting Started

1. Fork the repository
2. Create a feature branch (git checkout -b feature/feature-name)
3. Make your changes following the project's code style
4. Test your changes thoroughly
5. Commit your changes (git commit -m 'Add feature-name')
6. Push to the branch (git push origin feature/feature-name)
7. Open a Pull Request

Code Style

• Follow Kotlin coding conventions
• Use meaningful variable and function names
• Add documentation for public APIs
• Maintain clean architecture principles
• Follow Material Design guidelines for UI changes

Testing

This project includes a suite of unit tests to ensure code quality and stability.

To run the unit tests, execute the following command from the root of the project:

./gradlew test

Testing Guidelines:

• Add unit tests for new functionality
• Test on both rooted and non-rooted devices
• Verify compatibility across different Android versions (10+)
• Test network mode switching with various configurations
• Validate AIDL interface implementations
• Test Quick Settings tile functionality
• Verify configuration persistence and restoration

Reporting Issues

• Use the GitHub issue tracker
• Provide detailed reproduction steps
• Include device information and Android version
• Attach relevant logs when possible

LICENSE

This project is licensed under the GNU General Public License v3.0. See the LICENSE file for details.

Dependencies and Credits

Core Dependencies

• Shizuku: Root-less system API access
• libsu: Root access management
• Hilt: Dependency injection
• DataStore: Modern preferences storage
• Jetpack Compose: Modern UI framework
• Material Design 3: UI components and theming
• Kotlin Coroutines: Asynchronous operations

Special thanks to the Android development community and the maintainers of the open-source libraries used in this project.

Features 🎉

• Users can now switch between any 2 network modes of their preference, supporting 34 modes!
• Adaptive icons supporting various types of launchers and android's material design

What's Changed

• feat:Refactor CI/CD workflows and enhance testing coverage by @aunchagaonkar in https://github.com/aunchagaonkar/NetworkSwitch/pull/1
• initial fastlane structures from IzzyOnDroid by @IzzySoft in https://github.com/aunchagaonkar/NetworkSwitch/pull/2
• feat: Support network mode switching as per the user preferences by @aunchagaonkar in https://github.com/aunchagaonkar/NetworkSwitch/pull/10
• feat: Update launcher icons for adaptive theme support by @aunchagaonkar in https://github.com/aunchagaonkar/NetworkSwitch/pull/12
• Mark adaptive app icon implementation as complete by @S4tyendra in https://github.com/aunchagaonkar/NetworkSwitch/pull/13

New Contributors

• @IzzySoft made their first contribution in https://github.com/aunchagaonkar/NetworkSwitch/pull/2
• @S4tyendra made their first contribution in https://github.com/aunchagaonkar/NetworkSwitch/pull/13

Full Changelog: https://github.com/aunchagaonkar/NetworkSwitch/compare/v1.0.0...v1.1.0
